BDS Suspension BDS1522H 15-19 F150 2wd 6in. Suspension System
Regular price
$1,790.65 USD
Couldn't load pickup availability
BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Specifications:
| Description_ASC | 18" wheels with 5-5.5" total backspacing should be tested before mounting to ensure proper clearance to BDS steering knuckle. |
| Description_ASC | 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires. |
| Description_ASC | The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance. |
| Description_ASC | Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406 |
| Description_ASC | This system WILL WORK on Diesel Models. |
| Description_ASC | Will not fit HD models (7 lug). |
| Description_ASC | This kit is FMVSS No.126 Compliant |
| Description_DES | 15-19 F150 2wd 6in. Suspension System |
| Description_EXT | 15-19 F150 2wd 6in. Suspension System |
| Description_FAB | High clearance crossmembers improve strength and offroad capability |
| Description_FAB | Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility |
| Description_FAB | Top mounted strut spacers to provide lift and install easily |
| Description_FAB | Differential skid plate for improved offroad protection |
| Description_FAB | Rear lift blocks and u-bolts to lift and level the stance |
| Description_FAB | Standard NX2 Nitro shocks with vehicle-specific valving for better control |
| Description_FAB | Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road |

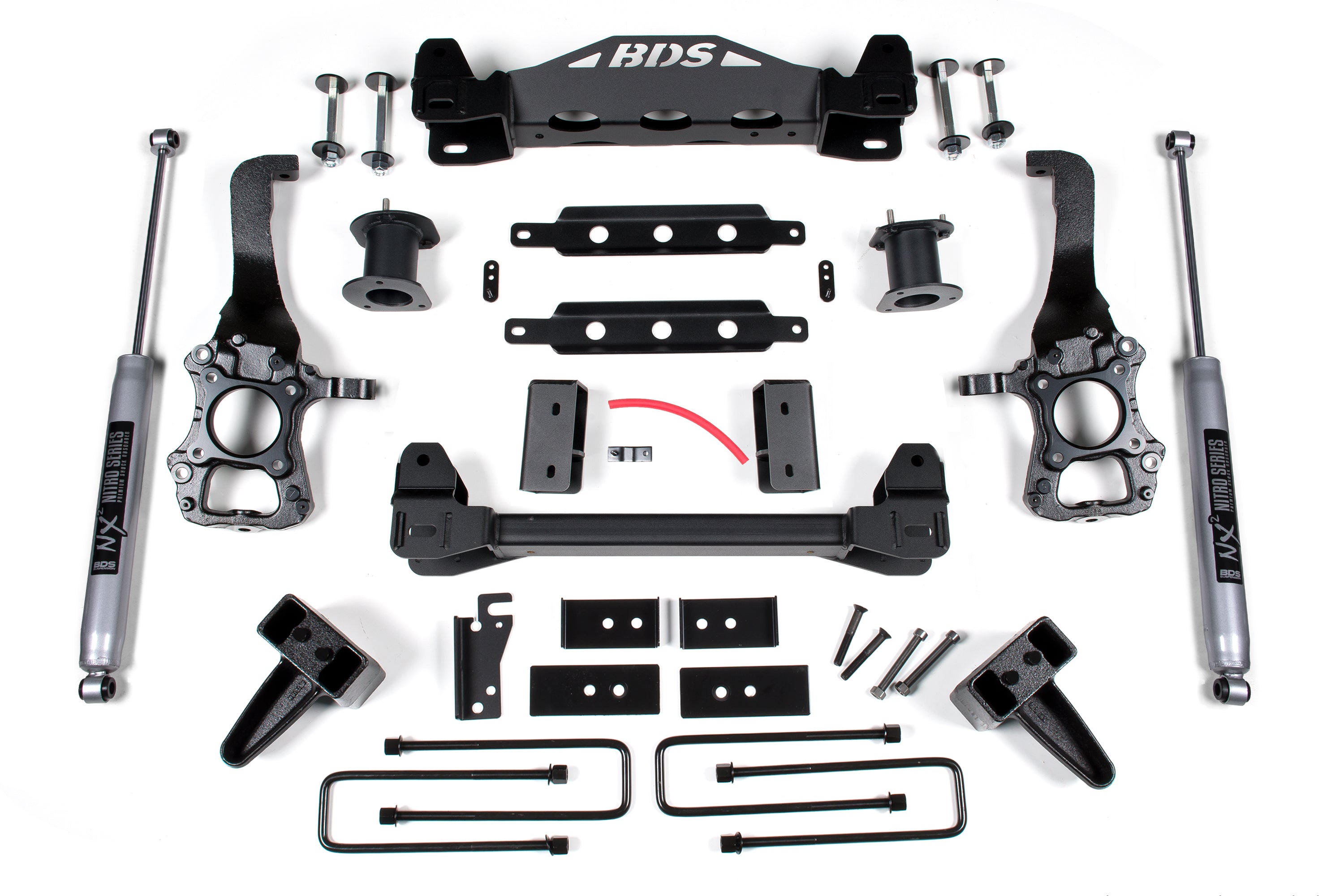

| Description_MKT | BDS Suspension leads the industry by developing a 2wd specific 6 inch lift kit suspension system for your 2015-2020 Ford F150 2WD truck. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers top mounted strut spacers and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. |
| Description_MKT | In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks. |
| Description_MKT | High Clearance Crossmemebers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2015 | Ford | F-150 | King Ranch | |
| 2016 | Ford | F-150 | King Ranch | |
| 2017 | Ford | F-150 | King Ranch | |
| 2018 | Ford | F-150 | King Ranch | |
| 2019 | Ford | F-150 | King Ranch | |
| 2020 | Ford | F-150 | King Ranch | |
| 2015 | Ford | F-150 | Lariat | |
| 2016 | Ford | F-150 | Lariat | |
| 2017 | Ford | F-150 | Lariat | |
| 2018 | Ford | F-150 | Lariat | |
| 2019 | Ford | F-150 | Lariat | |
| 2020 | Ford | F-150 | Lariat | |
| 2016 | Ford | F-150 | Limited | |
| 2017 | Ford | F-150 | Limited | |
| 2018 | Ford | F-150 | Limited | |
| 2019 | Ford | F-150 | Limited | |
| 2020 | Ford | F-150 | Limited | |
| 2015 | Ford | F-150 | Platinum | |
| 2016 | Ford | F-150 | Platinum | |
| 2017 | Ford | F-150 | Platinum | |
| 2018 | Ford | F-150 | Platinum | |
| 2019 | Ford | F-150 | Platinum | |
| 2020 | Ford | F-150 | Platinum | |
| 2016 | Ford | F-150 | SSV | |
| 2017 | Ford | F-150 | SSV | |
| 2018 | Ford | F-150 | SSV | |
| 2019 | Ford | F-150 | SSV | |
| 2020 | Ford | F-150 | SSV | |
| 2015 | Ford | F-150 | XL | |
| 2016 | Ford | F-150 | XL | |
| 2017 | Ford | F-150 | XL | |
| 2018 | Ford | F-150 | XL | |
| 2019 | Ford | F-150 | XL | |
| 2020 | Ford | F-150 | XL | |
| 2015 | Ford | F-150 | XLT | |
| 2016 | Ford | F-150 | XLT | |
| 2017 | Ford | F-150 | XLT | |
| 2018 | Ford | F-150 | XLT | |
| 2019 | Ford | F-150 | XLT | |
| 2020 | Ford | F-150 | XLT |
